ALL INDIA TRADE TEST PAPER FOR ITI FITTER TRADE AUG 2015 SEM 4 PART 2

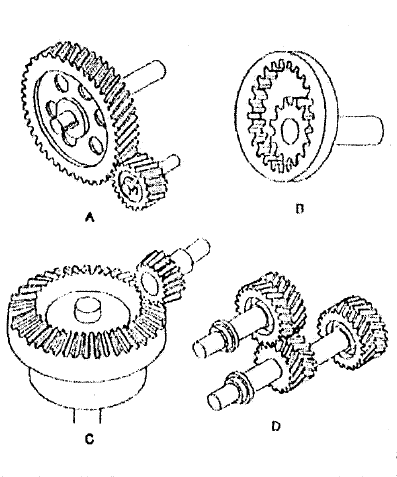

1) Identify the bevel gear shown in the figure.

A

B

C

D

Correct answer

C

2) Name the foundation bolt usually forged and filled up with lead or cement.

Eye foundation bolt

Rag bolt

Bent type bolt

Ordinary foundation bolt

Correct answer

Rag bolt

3) Name the rivet head used for heavy fabrication work.

Mushroom

Pan's head

Flathead

Snap head

Correct answer

Snap head

4) the main purpose of using a lubricant in machine tools is to ................

to cool down the mating parts

wet the mating parts for close contact

minimize the friction between the mating parts

prevent the machine tool from heating

Correct answer

minimize the friction between the mating parts

5) Identify which one is single strap butt joint shown in figure

A

B

C

D

Correct answer

B

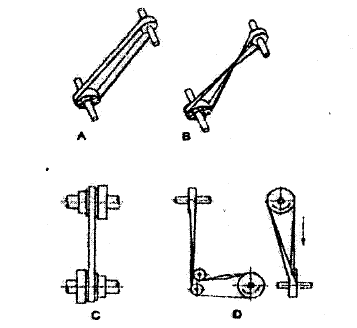

6) Which one is stepped drive shown In figure?

A

B

C

D

Correct answer

C

7) Belt slips reason is.

shock load

high starting torque

less tension

pulsating load

Correct answer

less tension

8) Identify the oil cup shown in the figure.

A

B

C

D

Correct answer

C

9) Which type of knot is used to joins two pieces of rope of equal diameters?

Sheepshank knot

Bowline knot

Square knot

Slip knot

Correct answer

Square knot

10) Name the belt fastener shown in figure?

Alligator type

Wire type

Crescent plate

Jackson type

Correct answer

Alligator type

11) Name of the gear used in the given figure.

Worm gear

helical gear

Bevel gear

Spur gear

Correct answer

Bevel gear

12) Name the Coupling which allows positive transmission Power of at large angles.

Slip type coupling

Clamp coupling

Plate coupling

Universal coupling

Correct answer

Universal coupling

13) what should be the diameter of the rivet?

8.34 mm

8.40 mm

8.04 mm

8.14 mm

Correct answer

8.04 mm

14) Name the type of clutch can only be engaged when two elements of the clutch are stationary.

Cone Clutch

Single plate Clutch

centrifugal clutch

Dog Clutch

Correct answer

Dog Clutch

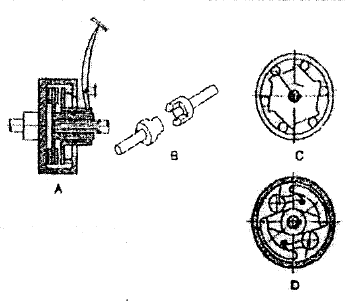

15) Identify the centrifugal clutch shown in the figure.

D

A

C

B

Correct answer

D

16) The best example of semi-liquid Lubricant is ......................

castor oil

grease

lard oil

graphite

Correct answer

grease

17) Which nonferrous metal tensile strength can be Increased by hammering or rolling?

Copper

Zinc

Lead

Tin

Correct answer

Lead

18) Name the tool which is used for pulling the big nail out of timber and move the heavy objects.

Claw hammer

Crowbar

Cutting Plier

Pincer

Correct answer

Crowbar

19) Gunmetal is an alloy of..........

Brass, Zinc, and Lead

Copper Tin and White Metal

Copper, Lead and Zinc

Copper, Tin, and Zinc

Correct answer

Copper, Tin, and Zinc

20) Which kind of material to be used for the hard soldering purpose?

Lead

Iron

Tin

Copper

Correct answer

Copper

21) Soldering iron are made of copper because

it is heavy

it is a bad conductor of heat

its thermal expansion is more

it is a good conductor of heat

Correct answer

it is a good conductor of heat

22) Which testing Instrument is used for checking the vertical horizontal levels of machines?

Straight edge

Block spirit level

Try square

Solid test mandrel

Correct answer

Block spirit level

23) Identify the type of defect shown figure.

Rivet too short

Rivet not set correctly

Snap wrongly positioned

Rivet length too long

Correct answer

Rivet too short

24) What is the standard taper of the pin?

1:30

1:40

1:50

1:60

Correct answer

1:50

25) Name the type of jig in which a base plate is not available.

Latch jig

Trunnion jig

Plate jig

Box jig

Correct answer

Plate jig
