VERNIER BEVEL PROTRACTOR READING MCQ

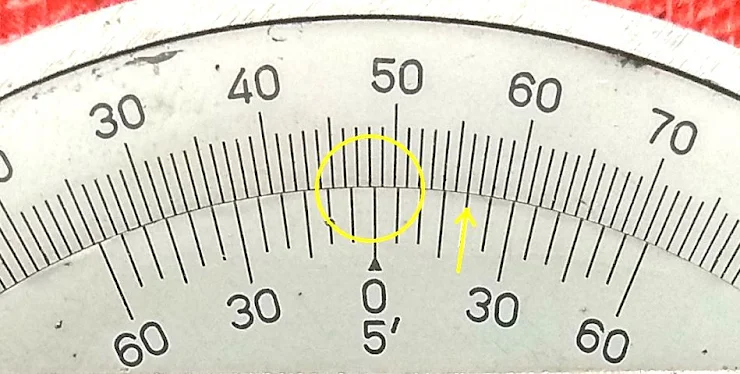

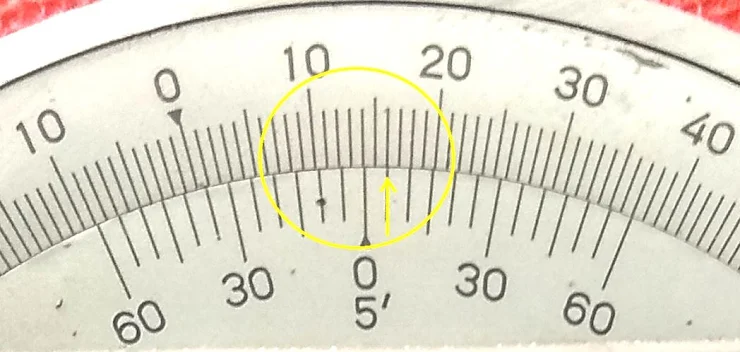

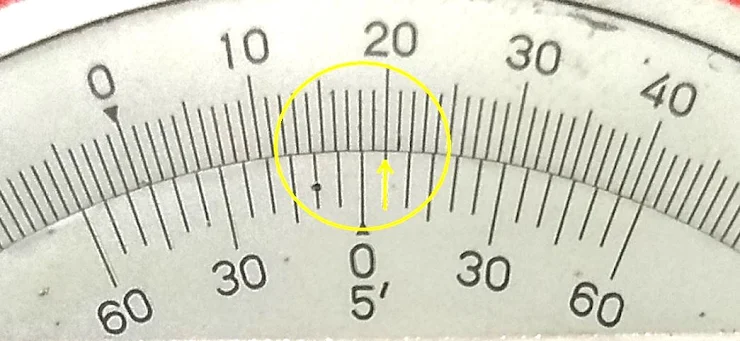

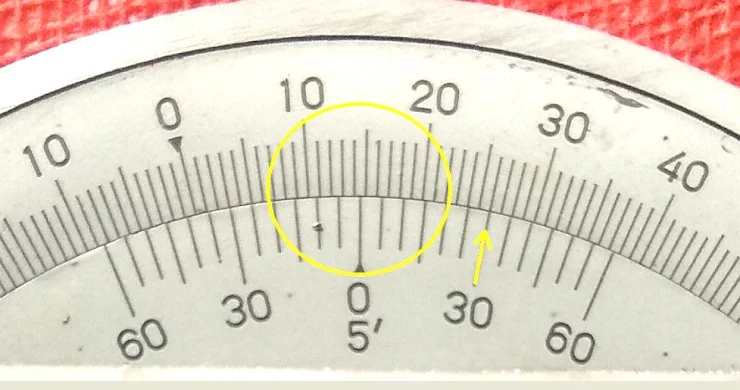

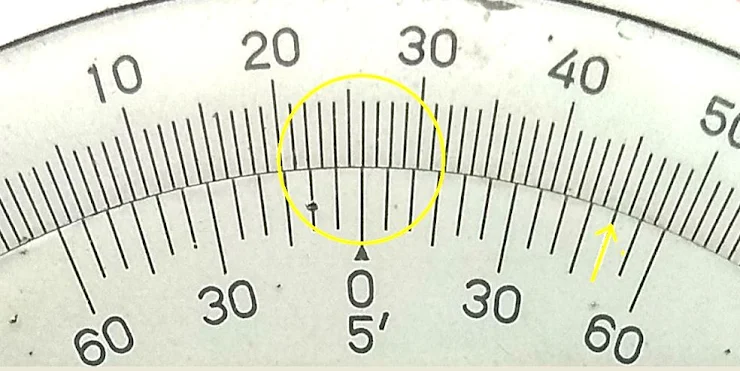

1) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

600
560
5
28

Correct answer

5

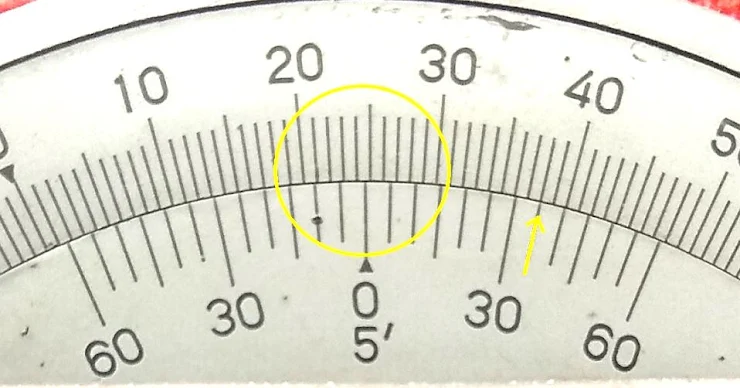

2) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)
Captionless Image

413
4120
4115
405


Correct answer


41⁰15’

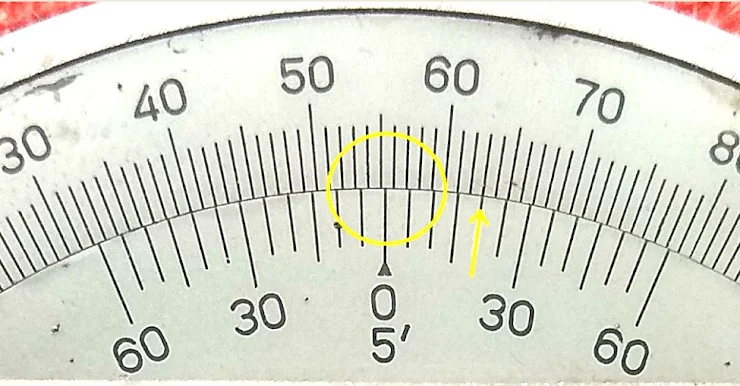

3) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

1032
1040
1050
1008


Correct answer



10⁰40’






4) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

2335
2431
2435
2436

Correct answer

2435


5) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

141
1410
145
1501

Correct answer

145


6) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

5115
4915
4930
5015


Correct answer


49⁰15’





7) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

4245
4130
4015
4115

Correct answer

4115


8) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

4431
4435
4535
4440


Correct answer


44⁰35’




9) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

2640
2650
2632
2740

Correct answer

2640


10) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

385
391
3955
381

Correct answer

385


11) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

554
5620
5530
5520

Correct answer

5520


12) What is the reading on the vernier bevel protractor shown in the image. Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

1740
1640
1642
174

Correct answer

1640


13) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image


2650
2550
2540
2545


Correct answer

25⁰50’




14) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

4830
4920
4840
4820

Correct answer

4820


15) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

4545
4445
4455
4450

Correct answer

4445


16) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

6120
6220
6110
6210

Correct answer

6110


17) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

5545
5650
5550
5540

Correct answer
5550


18) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image


1450
1530
1430
1550


Correct answer

14⁰30’



19) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

1810
195
1850
185

Correct answer

185


20) What is the reading on the vernier bevel protractor shown in the image? Least count is 5 minute? (For better viewing zoom the image)

Captionless Image

7845
7955
7855
7850

Correct answer
7855



MICROMETER READING 0.01 MM MCQ 1

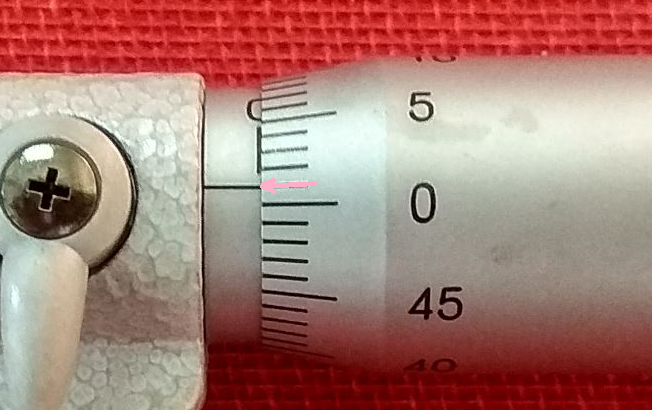

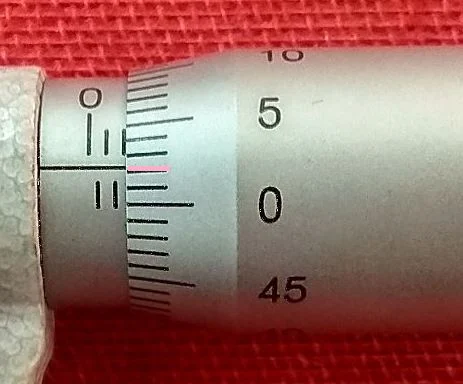

1) BOTH MEASURING FACES ARE TOGETHER INSTEAD OF ZERO READING THE READING ON MICROMETER IS AS SHOWN IN IMAGE. IDENTIFY THE ERROR? (ZOOM THE IMAGE FOR A BETTER VIEW)

Captionless Image

POSITIVE ZERO ERROR
NEGATIVE ZERO ERROR
NEUTRAL ZERO ERROR
NONE OF THE ABOVE

Correct answer

POSITIVE ZERO ERROR

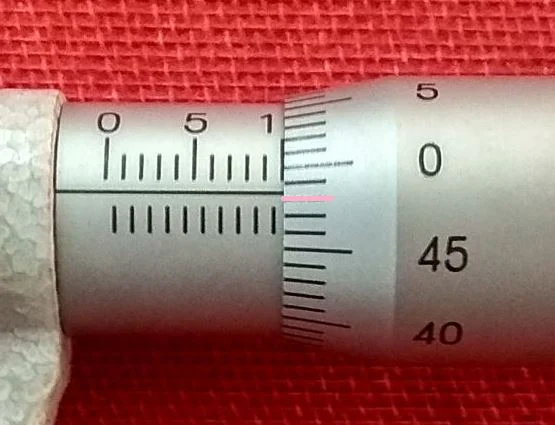

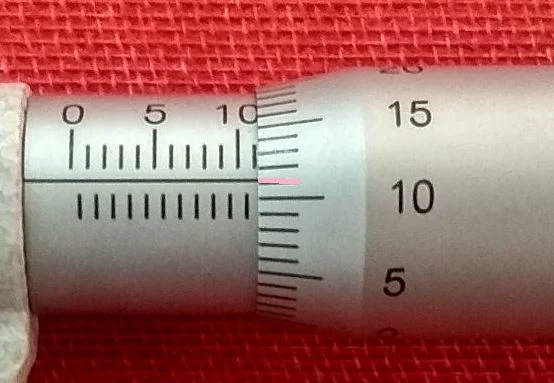

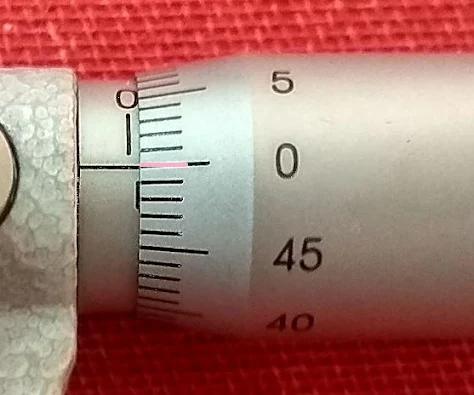

2) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image
0.35 mm
0.68 mm
0.34 mm
0.84 mm

Correct answer

0.34 mm

3) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

6.99 mm
6.59 mm
7.01 mm
7.00 mm

Correct answer

7.00 mm


4) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

9.35 mm
9.33 mm
9.34 mm
9.85 mm

Correct answer

9.35 mm

5) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

9.45 mm
9.85 mm
9.98 mm
9.35 mm



Correct answer

9.98 mm


6) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image
11.50 mm
11.20 mm
11.25 mm
11.75 mm

Correct answer

11.75 mm


7) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

0.24 mm
0.27 mm
0.25 mm
0.26 mm

Correct answer

0.26 mm


8) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

0.50 mm
0.25 mm
1.00 mm
0.01 mm

Correct answer

0.50 mm


9) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image
2.03 mm
1.02 mm
1.03 mm
1.05 mm


Correct answer


1.03 mm




10) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

1.70 mm
1.69 mm
1.20 mm
1.19 mm

Correct answer

1.69 mm


11) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

2.02 mm
2.51 mm
2.52 mm
2.01 mm

Correct answer

2.02 mm


12) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image


3.76 mm
3.26 mm
3.25 mm
3.75 mm


Correct answer

3.26 mm

13) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

4.45 mm
4.98 mm
5.43 mm
5.02 mm

Correct answer

4.98 mm


14) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

4.97 mm
5.06 mm
5.07 mm
5.02 mm


Correct answer

5.07 mm

15) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

9.62 mm
10.11 mm
10.12 mm
10.15 mm


Correct answer

10.12 mm




16) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

11.11 mm
10.12 mm
11.51 mm
11.12 mm

Correct answer

11.11 mm


17) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

0.58 mm
0.80 mm
0.05 mm
0.08 mm

Correct answer

0.08 mm


18) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

0.57 mm
0.56 mm
0.55 mm
0.07 mm

Correct answer

0.57 mm


19) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

0.90 mm
0.40 mm
0.35 mm
1.40 mm

Correct answer

0.90 mm


20) IDENTIFY THE READING SHOWN IN THE IMAGE CONSIDERING THERE IS NO ZERO ERROR IN THE GIVEN MICROMETER. (ZOOM THE IMAGE FOR BETTER VIEW)

Captionless Image

1.81 mm
2.31 mm
1.31 mm
1.30 mm

Correct answer

1.81 mm
