1) 5S stands for .......
Sort, Systematic, Segregation, Standardization and Sustain
Sort, Set, Shine, Standardization, Sustain
Sort, Sequence, Segregation, Standardization, Sustain
Sort, Set, Systematic, Standardization, Sustain
2) Benefits of the 5S systems are ..............
increase the cleanliness
increase productivity
increase the production rate
maintain the production rate
3) The first aid boxes should be properly equipped and kept in ........................
easy access place
machining area
important places
right position
4) Foam, water, and dry chemical are used in which type of fire extinguishers?
Class C
Class B
Class D
Class A
5) What will be the effect of electric shock when the current is at a very low level?
Major burning of the skin
Loose his conscious
Lose his balance and fall
Minor burns at the point of contact

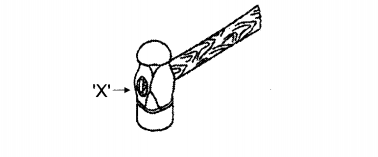

6) Name the part marked ‘X’ in the figure.
Left soft
Eye hole
Ball pein
face
7) Name the type of the chisel shown below.
Half round nose chisel
Diamond point chisel
Flat chisel
Cross cut chisel
8) Chisels are used to cut metal in cold or hot condition. Cutting point angle of the chisel is also known as .................................
angle of inclination
clearance angle
rake angle
wedge angle
9) The spindle of the bench vice has which type of thread?
BSF
BSW
Square thread
Knuckle thread
10) Name the type of divider shown in the figure.
Firm joint
Needle joint
Spring joint
Screw joint
11) The hacksaw blade is made of ............
medium carbon steel
low carbon steel
high carbon steel
cast iron

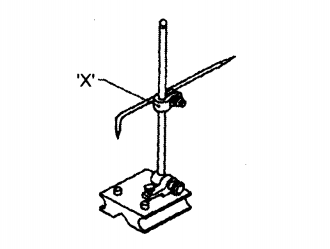

12) Identify and name the part marked ‘X’ in universal surface gauge?
Snug
Guide pin
Adjustment screw
Clamping nut
13) How the required cutting pressure is obtained in a hacksaw cutting machine?
Applying load
Hydraulically
Required length
Pneumatically
14) Name the part of the jenny caliper indicated by ‘X’ in the figure.
Joint leg
Bend leg
Heel
Point leg
15) Which is NOT a cutting portion of a file?
Face
Tang
Heel
point

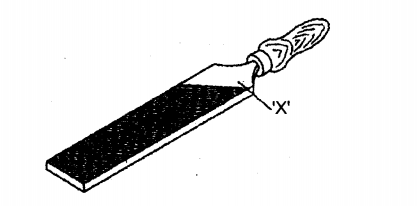

16) Name the part of the file marked ‘X’ in the figure.
File length
Heel
Tang
Ferrule
17) In a marking media, copper sulphate needs to be handled carefully because ..................
it is highly concentrated
it is poisonous
it will quickly dry
it will quickly dilute
18) Name the file which is used for sharpening teeth of wood working saws.
Crossing file
Barrette file
Riffler file
Mill saw file
19) Which one of the following tool is used to align the holes to be riveted?
Drift tool
Fullering tool
Dolly tool
Caulking tool
20) How will you specify the folding machine?
The maximum length of the machine
Maximum length and thickness of the sheet
Maximum width of the machine
The maximum thickness of the sheet
21) What is the function of a soldering iron in the soldering process?
Melt the metal
Melt the solder
Cool the solder
Cool the metal
22) The purpose of tempering a hardened steel component is for ........................
increasing its ductility
increasing its toughness
reducing its brittleness
increasing its hardness
23) While normalizing, the component should be cooled by ......................
dipping in water
air room temperature
quenching oil
forced air
24) What is the cutting angle of the general purpose drill?
112°
118°
110°
116"
25) The bench vice is specified by ..........
the length of the spindle
the moving distance of movable jaw
the width of the jaw
the length of the fixed jaw
